LUXAIR®

Premium Drive Axle Air Suspension System

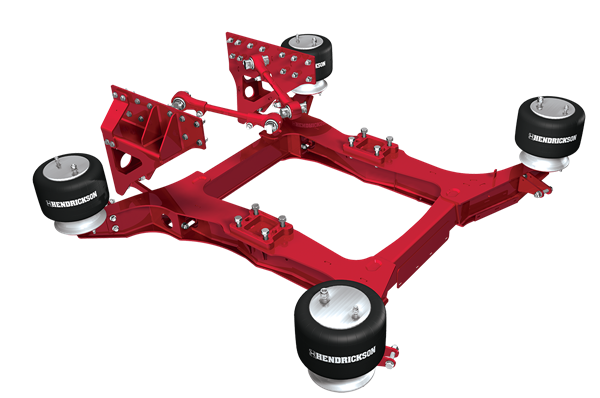

LUXAIR Premium Drive Axle Air Suspension System

Hendrickson's LUXAIR™ is a premium drive axle air suspension ideal for transit and coach bus applications. Utilising Hendrickson’s expertise in vehicle dynamics, this suspension can package with a variety of air springs and shock absorbers to ensure optimal performance no matter the application. The fabricated construction allows for flexibility, simplifying packaging for a variety of frame types and body styles. The efficient design also results in a lightweight solution that maintains the durability and performance expected in demanding transit and coach applications.

LUXAIR Premium Drive Axle Air Suspension System

Features and Benefits

Best-In-Class Performance

  • Tuneable rate, frequency and roll stiffness for varying applications
  • Multiple shock and air spring combinations
  • Non-reactive to brake and drive torque


TRAAX ROD™ - Torque Rods

  • Exceptional walk-out performance
  • Best-in-class durability
  • Multiple lengths without tooling


High Volume Air Springs

  • Outstanding level of passenger comfort for inner-city, touring bus and coach applications
  • Outboard mounting for superb handling and a significant reduction in road-induced shock loads


Fabricated Construction

  • Bolted, huck and welded versions available
  • Robust construction ensures exceptional reliability through variations in road conditions
  • Compatible with C-Channel and Monocoque frames
  • Easily add plumbing holes or mounting brackets

Specifications

Scalable Capacity Installed Weight1 Axle Travel2 Ride Height3 Brakes Engine Torque
Restrictions
Up to 14 t
(31,000 lbs.)		 354 kg (780 lbs.) +/- 76 mm
(+/- 3 in.)		 178-267 mm
(7-10 in.)		 Drum or Air Disc None

All applications must comply with applicable Hendrickson specifications and must be approved by the respective vehicle manufacturer with the vehicle in its original, as-built configuration. For additional details regarding specifications, applications, capacities, service and maintenance instructions, contact Hendrickson.

1. Installed weight includes complete suspension, V-rods and all hardware. Published weight is for LUXAIR at a 7 inch ride height. Other configurations may change weight. Axle brackets and frame hangers are not included.
2. Axle travel may be limited by vehicle manufacturer; axle stop settings and shock stroke may restrict suspension articulation. Varying ride heights and configurations may restrict travel. Contact Hendrickson for maximum axle travel values for LUXAIR.
3. For different ride height options, please contact Hendrickson, the vehicle manufacturer or dealer for further information.

Actual product performance may vary depending upon vehicle configuration, operation, service and other factors.
