Capacity: up to 11 t (24,000 lbs.)
Installed Weight1: 249 Kg (548 lbs.)
Axle Configuration: Single
Axle Travel2: +/- 76 mm (+/- 3 inches)
Ground Clearance: 273 mm (10.75 inches)
Ride Height3: 178 - 267 mm (7 - 10 inches)
Engine Torque Restrictions: None
All applications must comply with applicable Hendrickson specifications and must be approved by the respective vehicle manufacturer with the vehicle in its original as-built configuration. For additional details regarding specifications, applications, capacities, service and maintenance instructions, contact Hendrickson.

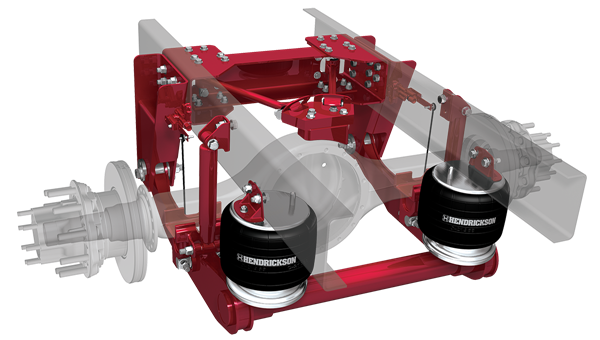

1. Installed weight includes complete suspension, V-rods, axle brackets, frame brackets and all hardware. Published weight is for COMFORTLINER at a 7 inch ride height. Other configurations may change weight.
2. Axle travel may be limited by vehicle manfacturer; axle stop settings and shock stroke may restrict suspension articulation. Varying ride heights and configurations may restrict travel. Contact Hendrickson for maximum axle travel values for COMFORTLINER.
3. For different ride height options, please contact Hendrickson, the vehicle manufacturer or dealer for further information.
Actual product performance may vary depending upon vehicle configuration, operation, service and other factors.
