W&C TA250

Trailer Air Suspension

W&C TA250

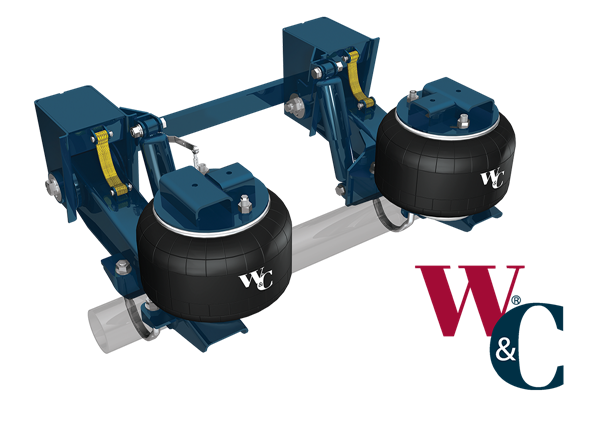

The W&C TA250 family is a primary trailer suspension, available in top mount and underslung, with a rated capacity of 11.3 t (25,000 pounds). The TA series delivers rugged performance, excellent ride quality and is ideal for on-highway, lowboy, drop-deck and container chassis applications.

  • 11.3 t suspension capacity
  • Ride heights from 165 to 483 mm
  • 2-year limited warranty*
  • Australian road-friendly certified**

* Contact your local W&C representative for complete warranty conditions and limitations.
** Not available for 165 mm ride height.


W&C TA250

Features and Benefits

  • Road-friendly shock absorbers
  • Dual eccentric pivot connection
  • Extended-life pivot bushes
  • Integral height control valve mounting
  • Suits 127 mm round axle
  • U-bolt connection for added strength
  • Axle straps to limit rebound
  • Lift kits
  • Air kits
  • Industry-standard parts
  • Technical support available

Proven technology that delivers in rugged conditions. The TA250 suspension delivers value to the end-user with its superior durability and is backed by W&C with dependable customer service.

Specifications

Model Capacity Travel Lift Ride Height Weight
TA TOP MOUNT 11.3 t 200 mm 100 mm 381 to 483 mm from 155 kg
TA UNDERSLUNG 11.3 t 215 mm 100 mm (limited applications) 165 to 305 mm from 159 kg
