RG Loose Axle

Trailer Loose Axle

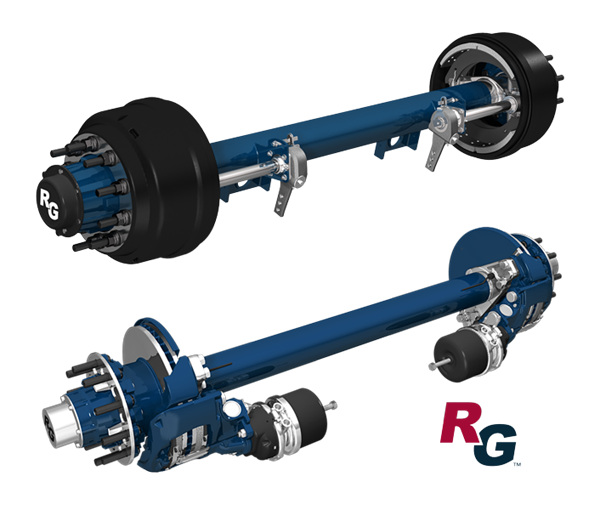

Reyco Granning non-integrated trailer axles for the global commercial and industrial markets are now available through Hendrickson Asia Pacific.
A huge range of suspension and axle combinations are available by combining Reyco Granning trailer axles with matching TA11™ air suspensions.

Features and Benefits

AXLE FEATURES

Straight and drop axles with track widths of 71.5" or 73"
Axle capacities up to 11.5 t
5/8" nominal wall & 5" Round Axle
HN and HP spindles
Friction-welded spindles

BRAKE FEATURES

Drum brakes:
16.5" x 7" quick release brake drums
Forged spiders for rigidity
Industry standard brake linings available in extended service

Disc brakes:
PAN22 calliper
430mm rotor

WHEEL MOUNTING OPTIONS

10 x 285 studs
10 x 335 studs

VALUE-ADDED OPTIONAL FEATURES

Choice of brake chambers
Choice of slack adjusters

All Recyco Granning trailer axles are backed by endrickson's industry-leading warranty and "world-class" customer and technical support

Specifications

Spindle Type	Suspension	Axle Diameter	5/8" Wall
HN Tapered	Air or Mechanical Spring	5" round	Up to 11,500 kg
HP Parallel	Air or Mechanical Spring	5" round	Up to 11,500 kg

Standard axles shown. If you have a specific request please email sales@hendrickson.com.au
