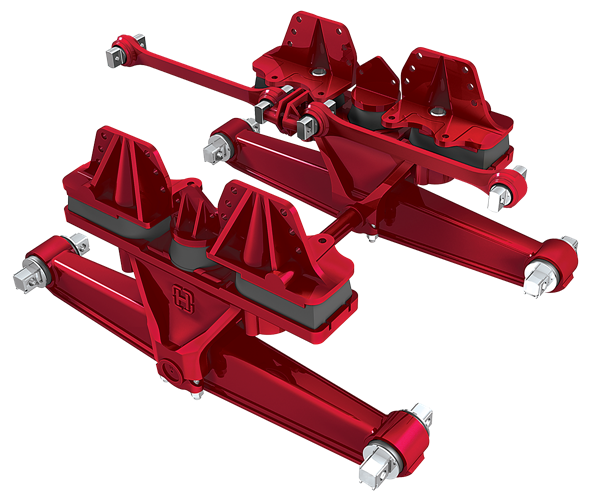

RS™ SERIES
Rubber Walking Beam Suspensions
The RS™ rear suspension with specially formulated rubber load cushions, is engineered to maximise payload in high centre-of-gravity and offset-load applications.
The RS™ rear suspension with specially formulated rubber load cushions, is engineered to maximise payload in high centre-of-gravity and offset-load applications.
| Model | Capacity (lbs.) |
Installed Weight1 (lbs.) |
Site Travel2 Rating (lbs.) |
GVW (lbs.) |
GCW (lbs.) |
|---|---|---|---|---|---|
| RS 403 | 40,000 | 1,030 | 55,000 | 73,000 | 160,000 |
| RS 463 | 46,000 | 1,086 | 60,000 | 80,000 | 190,000 |
| RS 503 | 50,000 | 1,175 | 65,000 | 80,000 | 225,000 |
| RS 523 | 52,000 | 1,225 | 65,000 | 80,000 | 245,000 |
1. Installed weight is for 54-inch axle spacing and includes complete suspension, torque rods, axle brackets, and frame brackets.
2. Job site travel ratings are limited to no more than five percent of vehicle operation at a speed not to exceed 8 kmh. Site travel ratings are consistent with published axle manufacturer's limitations. Axle and suspension site travel specifications must not be exceeded.
Disclaimer – some of the specifications shown on this web site may only apply to North America and not be available in the Asia Pacific region at this time. If you have a specific request please email sales@hendrickson.com.au
